Get a Price/Quote

Dsp Sine Wave Cards Specification

Product Type
DSP Sine Wave Card

Standard
ISO 9001:2015 Certified

Rated Voltage
12V/24V DC

Frequency (MHz)
50/60 Hz

Protection
Short Circuit, Overload, Over Temperature

Usage
Inverter, UPS, Power Generation Equipment

Size
Standard

Color
Green

Weight
250 g

Dimension (L*W*H)
180 mm x 135 mm x 20 mm

About Dsp Sine Wave Cards

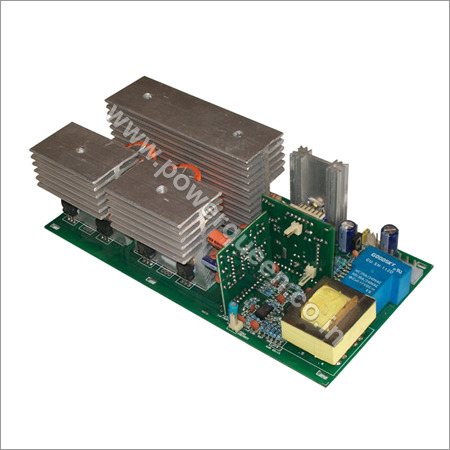

DSP Sine Wave Cards

Backed with expertise and knowledge in this domain, we are counted amongst the foremost manufacturers, suppliers and exporters of DSP Sine Wave Cards. In our premises, we use high grade raw materials and latest technology in the manufacturing process. Our expert professionals make sure that the manufactured product meets the international quality standards. Our assortment of DSP Sine Wave Cards is highly demanded because of its excellent performance, user friendly design and longer working life.

VOLTAGE LIMITS (INVERTER MODE)

Mains A.C. Lower Voltage Limit :110+ 5V Lower Recovery Voltage :120+ 5V
Mains A.C. Higher Voltage Limit : 275+ 5V Higher Recovery Voltage : 265+ 5V
Output Voltage in Inverter Mode : 210V+5%

VOLTAGE LIMITS (UPS MODE)

Mains A.C. Lower Voltage Limit :180+ 5V Lower Recovery Voltage : 190+ 5V
Mains A.C. Higher Voltage Limit : 260+ 5V Higher Recovery Voltage : 250+ 5V

Output Frequency Main Output Frequency : Same as Input Inverter, Output Frequency : 50.0+0.2Hz

Battery Charging

Battery Charging Voltage Range :120 V to 280V
Bulk Charging Current :11.0+1.0Amp for High, 8-10 Amp for Low
Boost Charging Current : 6+2.0Amp
Float Charging Current :< 1 A
Trickle Charging : 3+0.3A (When Battery Is Fully Discharged)
Battery Charger Boost : 14.4+0.2V (Per Battery)
Battery Charger Bulk Voltage : 13.6+0.2V (Per Battery)
Provision for HI LOW charging
Battery Lower Voltage Limit :10+0.3(for 12V System)
THD : <1.5% on no load and <5. % on full load

Unmatched Protection Features

Our DSP Sine Wave Cards provide comprehensive safeguarding against short circuit, overload, and overheating. This ensures long-lasting reliability and safety for your power equipment, minimizing the risk of damage and downtime.

Versatile Applications

Ideal for use in inverters, UPS systems, and various power generation equipment, these cards offer universal compatibility and stable operation. Their standard size and efficient design cater perfectly to both domestic and industrial installations.

Quality Assurance and Compliance

Each card is manufactured under the strict guidelines of ISO 9001:2015 certification, guaranteeing consistent quality and performance. This commitment to standards makes them a preferred choice for professionals in India and abroad.

FAQs of Dsp Sine Wave Cards:

Q: How are DSP Sine Wave Cards installed in inverter and UPS systems?

A: Installation of DSP Sine Wave Cards involves integrating the module according to the manufacturers wiring diagram within the equipments control section. Ensure the rated voltage (12V/24V DC) and physical dimensions are compatible with your system for a secure fit and proper function.

Q: What benefits do these DSP Sine Wave Cards offer for power generation equipment?

A: They deliver efficient sine wave output, resulting in smoother power conversion and reduced distortion. Their protection featuresshort circuit, overload, and over-temperatureenhance the reliability and longevity of your power generation systems.

Q: When should DSP Sine Wave Cards be replaced or serviced?

A: Replacement or servicing is recommended if you experience inconsistent power output, frequent protection trips, or visible physical damage to the module. Regular maintenance, including visual inspections and functional testing, helps ensure optimal performance.

Q: Where are DSP Sine Wave Cards commonly used in India?

A: These cards are widely utilized in inverter setups, UPS systems, and various power generation units across industries, commercial establishments, and residential facilities throughout India, thanks to their universal compatibility and trusted certification.

Q: What is the process for sourcing DSP Sine Wave Cards from suppliers?

A: You can contact authorized exporters, manufacturers, or service providers in India for bulk or individual orders. Ensure to specify your required voltage, size, and certification needs to get the most suitable product for your application.

Q: How does ISO 9001:2015 certification benefit users of these sine wave cards?

A: ISO 9001:2015 certification assures users that these cards meet rigorous quality management standards, resulting in consistent performance and reliability. This standard emphasizes process excellence, customer satisfaction, and continued product improvement.
