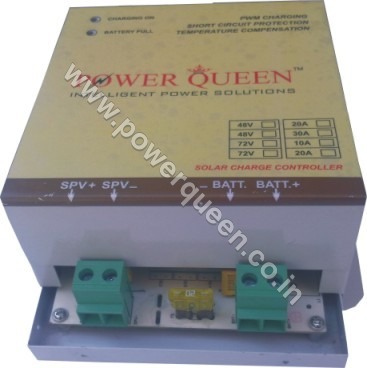

72V/20A SOLAR CHARGER

72V/20A SOLAR CHARGER
72V/20A SOLAR CHARGER
Product Code : 7220SCH
Brand Name : POWERQUEEN
Product Description


72V/20 AMP PWM SOLAR CHARGE CONTROLLER

 PWM controlled energy efficient these chargers rapidly charged the battery with maximum efficiency, increase battery life and delivers best power from PV panel to battery

Advance Features:

Advanced features of our solar charge controllers:

· Micro-controller base

· In built de-sulfation (battery saver) to increase battery life

· Unique battery charging algorithm for maximum power delivery from PV Panel

· PWM charging

· Temperature compensation

· Battery healing to reduce battery aging

· Better battery utilization (small size of battery required)

· High quality metal body

Advantages:

·More energy from same size of solar panel (>25%)

· Reducing over all cost of system

· Reliable system

Features:

· Charging current: 20A

· Charging method: CC/boost (with PWM)/ float)

· Standby current: <5 ma

 Charging Indication: Battery voltage, charging, low battery, charged.

 Protection:

· Battery reverses polarity protection with a fuse

· Over charge protection

· Short circuit protection

 Specification

1.Efficiency –More then -90%

2.Supported PV voltage- 72V DC

3.Charging voltage cut -84 VOLT

4.Battery float voltage -82.8V

5. Charging Amp- 20Amp

6.Battery Voltage -72 VOLT

7.Protection- Short Circuit, Lightening protection, Reverse Polarity,

8. Indication- Charging, full Charge

9. Suggested Maximum PV -1500W

10. Indication Type -Led
